22 mm slim profile sandwich wall panel
A slim 22 mm wall panel built as a sandwich construction with 0.8 mm galvanized steel facings and a ceramic wool insulation core. Rated A15, A0, B15 and B0, it is used as a bulkhead partition or lining, with panels joined by a 2 mm thick galvanized spline plate.
Request Datasheet
Technical specification
- Class
- A15, A0, B15, B0
- Panel thickness
- 22 mm
- Facings
- 0.8 mm galvanized steel (GI), both sides
- Core
- Ceramic wool (non-combustible), 128 kg/m³
- Joining spline
- 2 mm thick galvanized steel plate
- Surface finish
- Powder coating / PVC film coating
- Maximum dimension
- 600 mm x 2400 mm
- Approx. weight
- 15.38 kg/m²
- Certification
- IRS certified
- Standard
- IMO FTP Code 2010
- Warranty
- 1 year
Slim profile construction
At 22 mm overall thickness, the panel saves space in accommodation and service areas while still carrying a full sandwich build-up: two 0.8 mm galvanized steel facings around a non-combustible ceramic wool core of 128 kg/m³.
The slim depth makes the panel well suited to refit work and lining applications where a conventional 35 mm or 50 mm bulkhead panel would take up too much cabin footprint.
Spline jointing

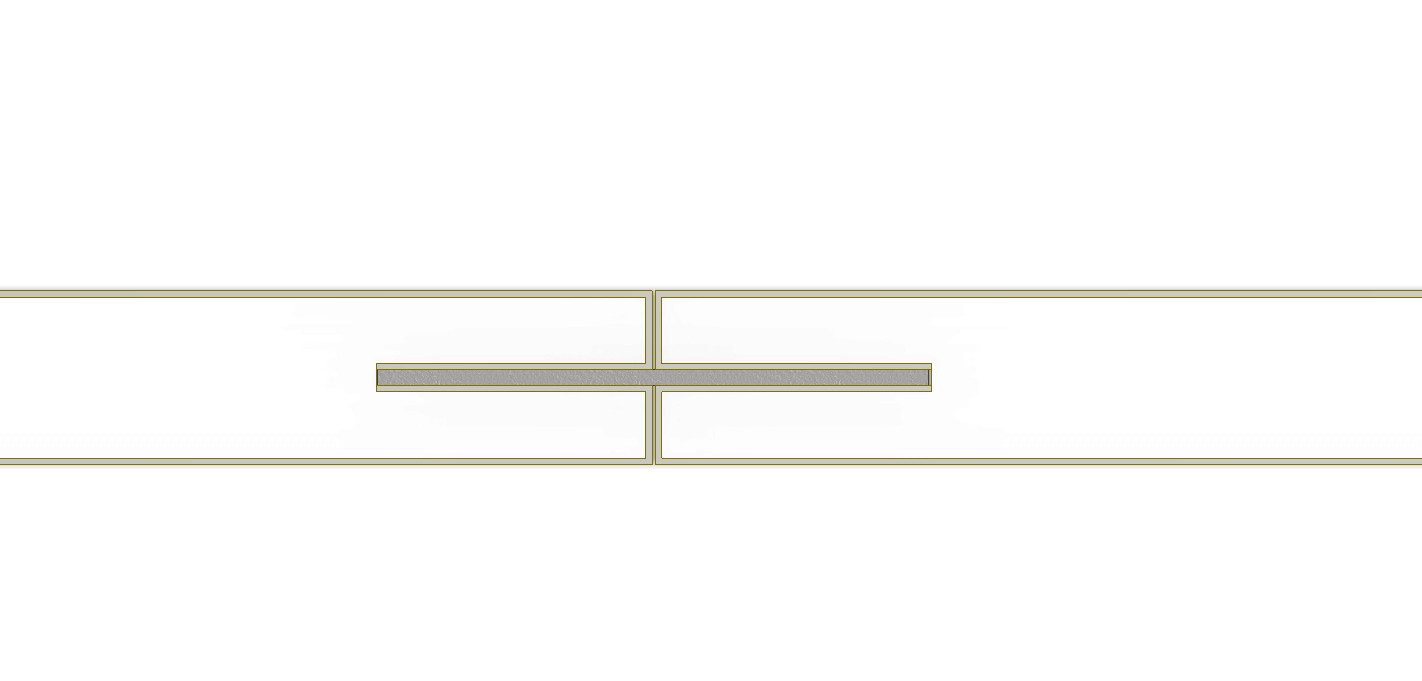

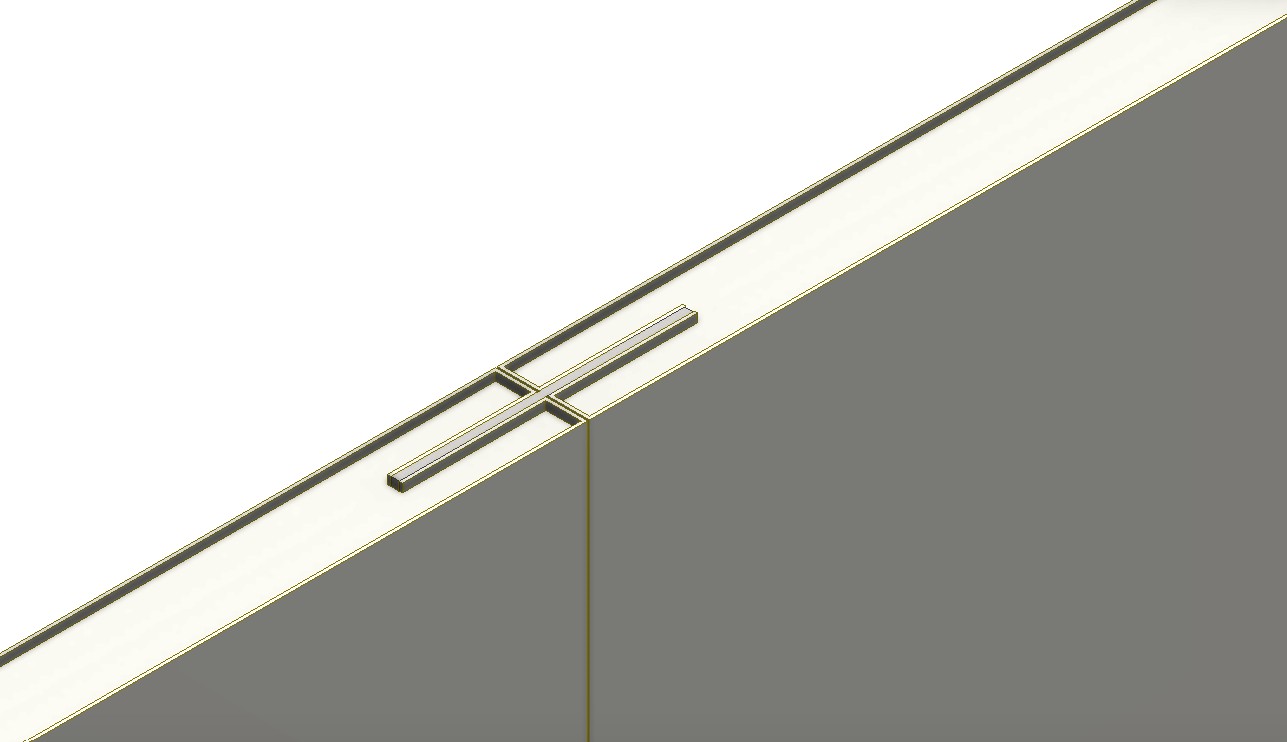

Panels are connected with a 2 mm thick galvanized steel spline plate that slides into the machined edges of adjacent panels, giving a continuous, aligned joint across the partition or lining.
The spline connection keeps erection fast and allows sections to be demounted later without cutting neighbouring panels.
Fire classification
The panel is certified for A15, A0, B15 and B0 divisions, letting a single product cover bulkhead and lining requirements across different division classes.
Certification is held with IRS (Indian Register of Shipping) and fire performance is tested against IMO FTP Code 2010 protocols.
Ordering
Send bulkhead or lining areas, the required division class and finish preference. We reply with datasheets, certification references and indicative pricing.
Panels are supplied at a maximum dimension of 600 mm x 2400 mm and cut to project schedules for Indian and regional yards.
Where it is used
- Bulkhead partitions in accommodation and service areas
- Wall linings in refit and upgrade packages
- Marine and offshore vessel interior divisions
- A15, A0, B15 and B0 rated divisions
Send your vessel type, division class and quantities — we respond with datasheets, IRS certification references and indicative pricing.
