Marine wall panels — B15 and B0 fire-rated bulkheads
Fire-rated bulkhead panels with a mineral wool core and steel facings, available in 35 mm and 50 mm thickness for cabin and corridor divisions. IRS type-approved and tested to the IMO FTP Code.
Request Datasheet
Technical specification
- Class
- B15 and B0
- Thickness
- 35 mm and 50 mm
- Core
- Non-combustible mineral wool
- Facings
- Pre-coated steel sheet
- Jointing
- Interlocking edge profile, demountable
- Approval
- IRS type approval; IMO FTP Code fire tested
- Standard
- SOLAS Chapter II-2 structural fire protection
- Application
- Cabin and corridor bulkheads, divisions
Panel build-up
Panels combine a non-combustible mineral wool core with pre-coated steel facings, pressed to a flat, dimensionally stable board suited to marine interior outfitting.

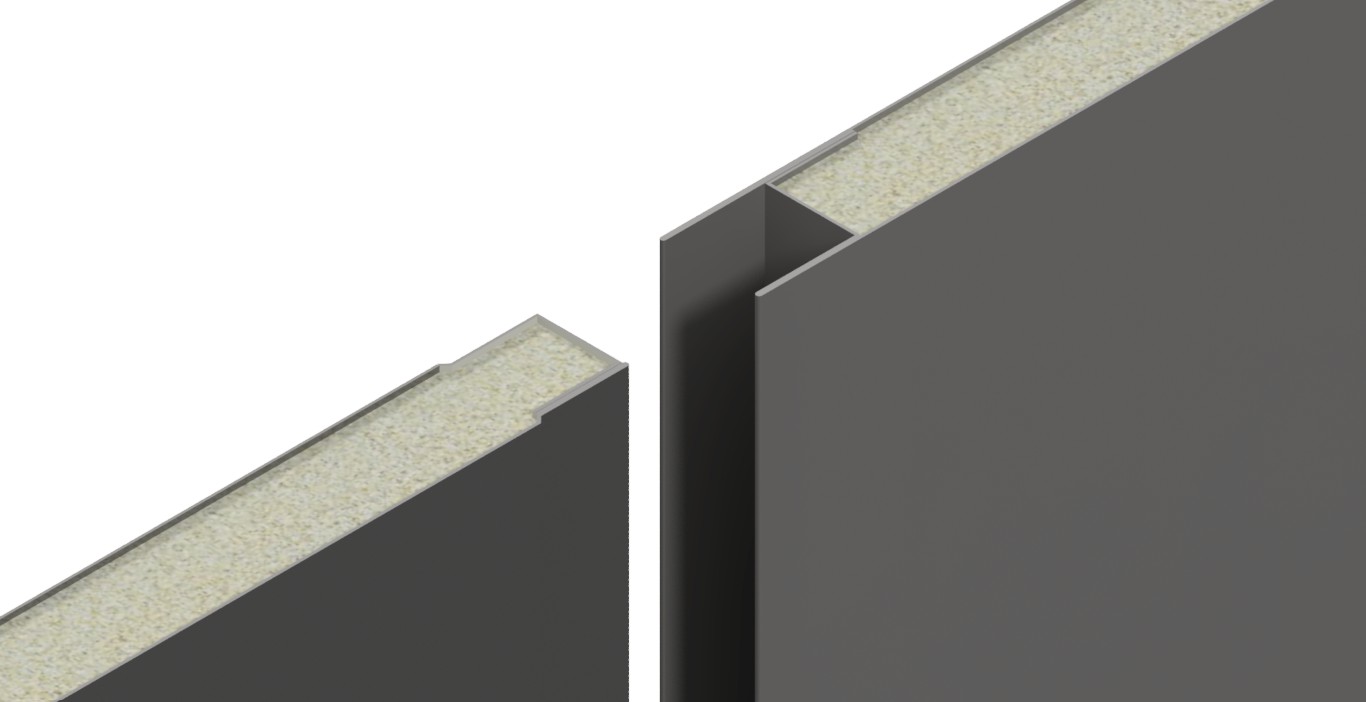

The interlocking edge profile allows panels to be erected, aligned and later demounted without cutting adjacent divisions.
Choosing 35 mm or 50 mm
35 mm panels suit B0 and lighter B15 divisions where cabin footprint matters. 50 mm panels are specified where added insulation, acoustic separation or panel span is required.
Both thicknesses use the same jointing system, so a single division can mix thicknesses where the general arrangement calls for it.
Certification and documentation
Wall panels are supplied under IRS type approval with fire performance established through IMO FTP Code test protocols referenced by SOLAS Chapter II-2.
Certificate packs with batch traceability are issued per project for class survey and yard QA.
Ordering
Send bulkhead areas, required class, thickness and finish. We reply with datasheets, certification references and indicative pricing.
Panels are cut to project schedules and delivered to Indian and regional yards.
Where it is used
- Cabin and corridor bulkheads in newbuild accommodation
- Offshore living quarters and office modules
- Boat builder and workboat interior divisions
- Refit and interior replacement packages
Send your vessel type, division class and quantities — we respond with datasheets, IRS certification references and indicative pricing.
